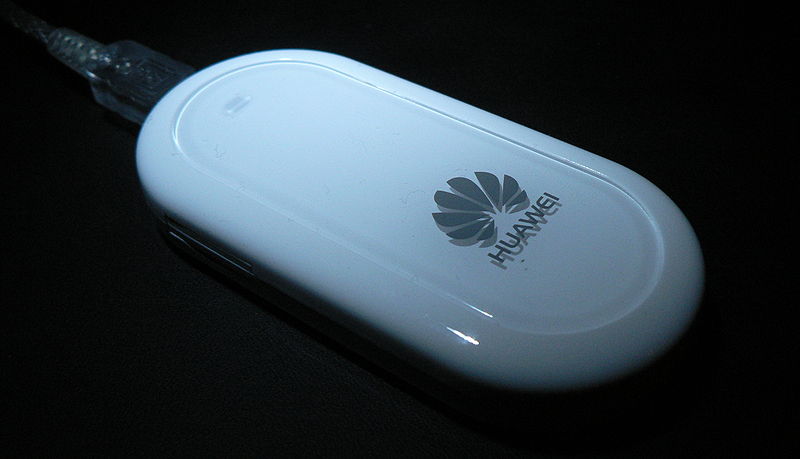

Huawei E220 HSDPA USB Modem

Be mini. Be Speedy

Huawei E220

With tiny design and high speed, Huawei E220 USB Modem redefines mini fashion for the elite. The irresistible creation features the eye-catching sleek design and a great speed up to 3.6Mbps. Its USB cable can be used by both laptops and desktop computers. Put the chic near your hand and enjoy the charm of mini fashion.

Main Features

  • HSDPA/UMTS/EDGE/GPRS/GSM
  • HSDPA packet data service with a maximum transmission rate of 3.6Mbps
  • UMTS packet data service with a maximum transmission rate of 384kbps
  • EDGE packet data service with a maximum transmission rate of 236.8kbps
  • SMS service
  • Auto installation, convenient for use
  • Windows 2000 and Windows XP Operating system

Specifications

  • Technical standard
  • HSDPA/UMTS: 3GPP R99, R5
  • GSM/GPRS/EDGE: 3GPP R99
  • Operating frequency
  • HSDPA/UMTS 2100MHz
  • GSM/GPRS/EDGE 900/1800/1900MHz
  • External interface
  • Mini USB interface: supporting USB 2.0 Full Speed
  • Antenna: Internal antenna
  • SIM/USIM card: standard 6 PIN SIM card interface

Dimensions:
89 mm (D) x 43 mm (W) x 14.5 mm (H)

Weight
< 50g

Software

ActiveXperts SMS and MMS Toolkit is an ActiveX/COM component (i.e. an SDK), and provides SMS and Pager messaging functionality. With this Toolkit, you can send and receive SMS messages via: a GSM modem, a GSM phone, an SMPP compliant SMSC provider or a Hayes compatible modem (using a TAP/XIO provider). It supports paging, either using the SNPP network protocol, or using DTMF dialing using a modem. Samples are provided for Visual Basic .NET, Visual C# .NET (CSharp), Visual Basic, Visual C++ (Visual Studio VC++), ASP, ASP.NET, PHP, Delphi and VBScript.

  Download Download ActiveXperts SMS and MMS Toolkit
  Visit the http://www.activexperts.com/xmstoolkit web site
